Electricity is a form of energy resulting from the existence of charged particles (such as electrons or protons), either statically as an accumulation of charge or dynamically as current.

Electricity is an apparent force in nature that exists whenever there is a net electrical charge between any two objects.

Basics of Electrostatics:

• Electrical charges are either negative (electrons) or positive (protons)
• The unit of charge, q , is called the coulomb.
• When there are equal numbers of positive and negative charges there is no electrical force as there is no net charge. This is the case for a neutral atom.
• Electrical force is created when electrons are transferred from one material to another (e.g. rubbing a wool cloth with a plastic comb).
• Electrical charge is conserved; charge is neither created nor destroyed

Properties of Electricity:

CURRENT: denoted by I and measured in amperes. Current flows from negatively charged material to positively charged material and is essentially the number of electrons per second that are carried through a conductor. Current is measured in units of amps. 1 amp = 1 coulomb/sec = 6.2 x 10¹⁸electrons per second!

RESISTANCE: Property of material that helps prevent the flow of electrons in it. Metals are good conductors due to low resistance. Wood is a poor conductor due to high resistance. Resistance, R , is measured in ohms and depends upon both the type of material and its size. Long wires have more resistance than short wires; thin wires have more resistance than thick wires. R is also temperature dependent.

VOLTAGE: Potential difference between a negatively charged object and a positively charged one (like two terminals on a battery). Potential difference is measured in units of Volts ( V )which represents the work done per unit charge to move electrons between the positive and negative terminals. If a potential difference exists, then energy can be extracted.
Imagine that you have two opposite charges that you want to separate. It takes work to separate the charge and thus the separated charges store energy. The amount of stored energy is given by:
E = qV where V is the voltage or electric potential of some system.
The units of voltage or Volts: 1 Volt = 1 Joule/Coulomb
If the separated charges get back together, work/energy can be extracted from the system. If there is some pathway for the charges to flow then we get a current. Current is denoted by I and is in units of amperes or amps  1 Ampere = 1 coulomb/second

OHM's LAW Is there a relation between I, V, and R ? Let's do an experiment:

In the above circuit there is a battery (V), some resistors (R), and a light bulb that can only be activated if the right number of amps reach it. We can control this buy putting the right resistance in the circuit for a given battery Voltage.Experimental results then lead to Ohms law:

V = R * I This is a linear relation. If you double the voltage (V) then for the same value of R you get twice the current. If you want to keep the current the same value after doubling V, you would have to double the resistance (R).
Example:

• Standard US household voltage is 120 Volts.
• The heating element in your toaster has R = 15 ohms.
• What is the current flowing through your toaster?
  I = V/R = 120/15 = 8 amps

Your electricity bill essentially measures the amount of current that you use but you use this current as Power .

Power = V * I So the toaster has a power of 120x8 = 960 Watts.
Energy = Power * Time (and its energy --> kilowatt hours that you pay for - a 100 watt light bulb left on 10 hours = 1 kilowatt hour. )
If you leave your toaster on for one hour, than that would also be approximately 1 KWH (960 watt-hours if you want to nit pick).

1000 Watt-hours = 1 Kilowatt hour (KWH);  A KWH will be our basic unit of energy in this class. You purchase KWHs from the electric utility whenever you use power in your home.

The Discovery of Electricity and Magnetism and the Generation of Electricity.

In the early 19th century the following similarity between two charged particles and two magnets was observed:

• both created "forces" that could operate in a vacuum
• charge had a postive and negative component; magnets had a north and south pole  force could then be either attractive or repulsive.

• both the magnetic force and the electrostatic force strength decreased as 1/R²

In 1820 Oersted did this experiment:

and discovered that an electric current creates a magnetic field.
Similarly, a coil of wire with a current passing through it generates a magnetic field. This is known as an electromagnet or solenoid .
So now we know that a current can create a magnetic field. If a magnetic field can create a current then we have a means of generating electricity. Experiments showed that a magnetic just sitting next to a wire produced no current flow through that wire. However, if the magnet is moving a current is induced in the wire. The faster the magnet moves, the greater the induced current.
This is the principal behind simple electric generators in which a wire loop is rotated between to stationary magnets. This produces a continuously varying voltage which in turn produces an alternating current .

Diagram of a simple electric generator:

To generate electricty then, all we really want to do is have some (mechanical) mechanism turn a crank that rotates a loop of wire between stationary magnets. The faster we can get this crank turned, the more current we can generate.Popular Methods of Turning the Crank:

• Let water fall on it (Hydro Power)

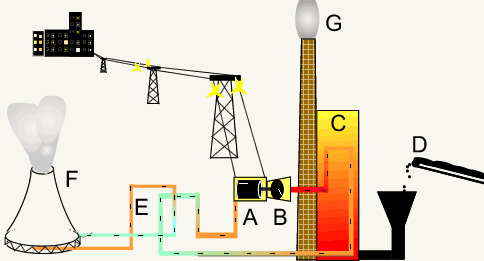

• Direct a nozzle of steam at it (Coal or Nuclear Fired Steam Plant)
• Let the wind turn it (windmill)
